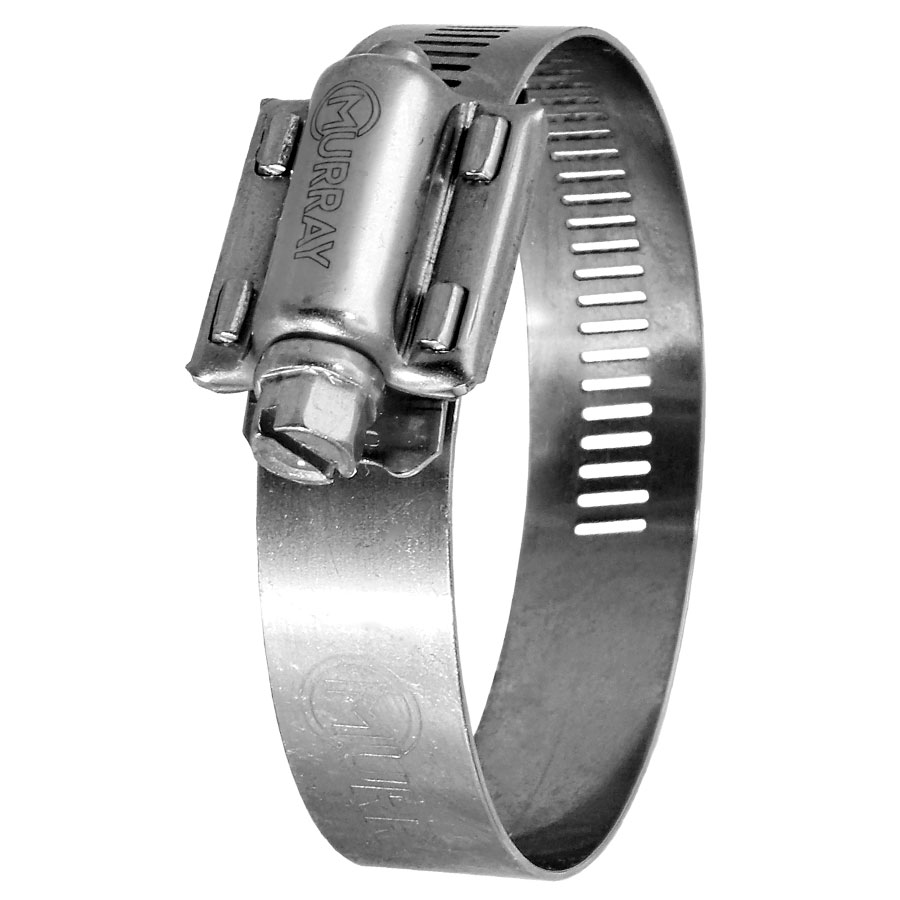

5/8” Heavy Duty Worm Gear Clamp – XH Series

Available in 300 series stainless steel, 304 stainless steel, and 316 stainless steel with 5/8” band width.
Screw is longer and has a larger diameter than standard Worm Drive clamps to provide strength under load and to increase the number of threads engaged with the band. This produces a HD Worm Gear Clamp that can withstand higher loads.
Band material is slightly thicker allowing for higher tensile strength providing a stronger clamp capable of producing higher torque ratings.
Ultimate torque is a minimum of 100 in lbs, or 11.3 Nm.
Recommended Installation Torque is 75 in lbs or 8.5 Nm.
Suitable for applications where a heavier duty clamp is necessary.
Other material grades may be available upon request.

Specifications

Clamp Size Chart

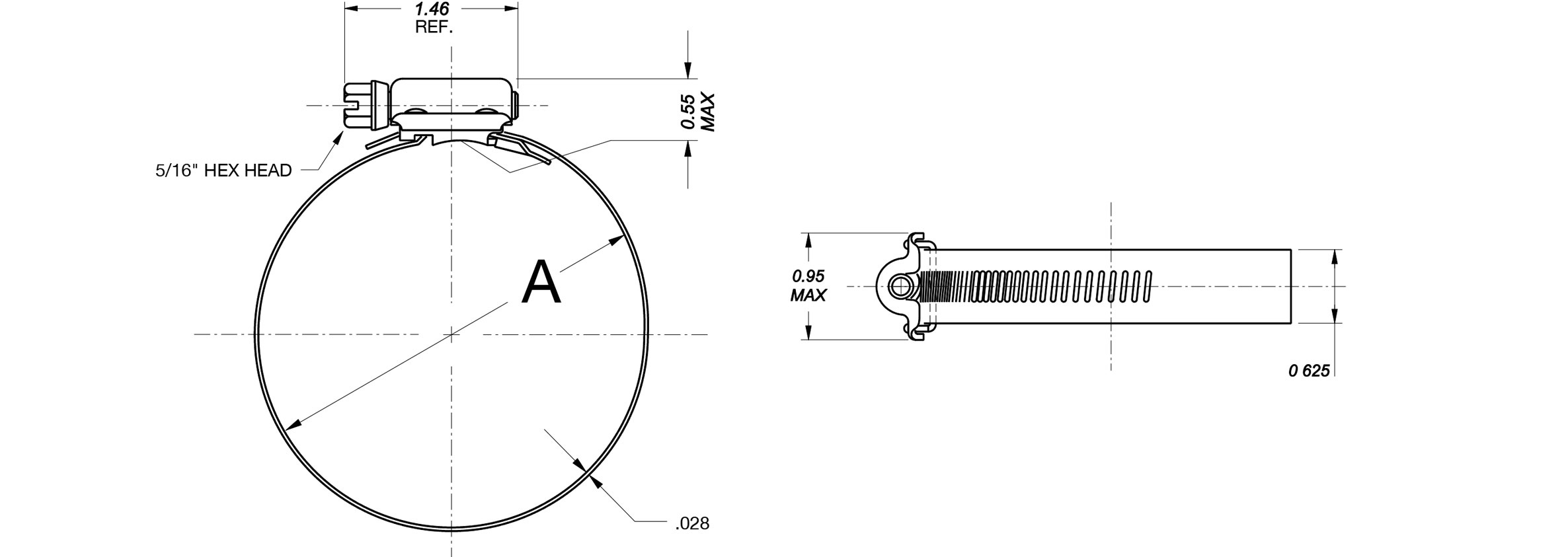

Technical drawing of a hose clamp with dimensions labeled, including a 5/16 inch hex head and a band thickness of 0.028 inches.

Part Number			"A" Diameter Range
300 Series SS	304 SS	316 SS	Decimals		Millimeters
XHF212SS	XHG212SS	XHL212SS	2.12	1.25	54	32
XHF237SS	XHG237SS	XHL237SS	2.37	1.50	60	38
XHF262SS	XHG262SS	XHL262SS	2.62	1.75	67	44
XHF287SS	XHG287SS	XHL287SS	2.87	2.00	73	51
XHF312SS	XHG312SS	XHL312SS	3.12	2.25	79	57
XHF337SS	XHG337SS	XHL337SS	3.37	2.50	86	64
XHF362SS	XHG362SS	XHL362SS	3.62	2.75	92	70
XHF387SS	XHG387SS	XHL387SS	3.87	3.00	98	76
XHF412SS	XHG412SS	XHL412SS	4.12	3.25	105	83
XHF437SS	XHG437SS	XHL437SS	4.37	3.50	111	89
XHF462SS	XHG462SS	XHL462SS	4.62	3.75	117	95
XHF487SS	XHG487SS	XHL487SS	4.87	4.00	124	102
XHF512SS	XHG512SS	XHL512SS	5.12	4.25	130	108
XHF537SS	XHG537SS	XHL537SS	5.37	4.50	136	114
XHF562SS	XHG562SS	XHL562SS	5.62	4.75	143	121
XHF587SS	XHG587SS	XHL587SS	5.87	5.00	149	127
XHF612SS	XHG612SS	XHL612SS	6.12	5.25	155	133
XHF637SS	XHG637SS	XHL637SS	6.37	5.50	162	140
XHF662SS	XHG662SS	XHL662SS	6.62	5.75	168	146
XHF687SS	XHG687SS	XHL687SS	6.87	6.00	174	152
XHF712SS	XHG712SS	XHL712SS	7.12	6.25	181	159
XHF737SS	XHG737SS	XHL737SS	7.37	6.50	187	165
XHF762SS	XHG762SS	XHL762SS	7.62	6.75	194	171
XHF787SS	XHG787SS	XHL787SS	7.87	7.00	200	178
XHF812SS	XHG812SS	XHL812SS	8.12	7.25	206	184
XHF837SS	XHG837SS	XHL837SS	8.37	7.50	212	191
XHF862SS	XHG862SS	XHL862SS	8.62	7.75	219	197
XHF887SS	XHG887SS	XHL887SS	8.87	8.00	225	203

Text stating More Sizes Available Upon Request inside a partial blue circular border.

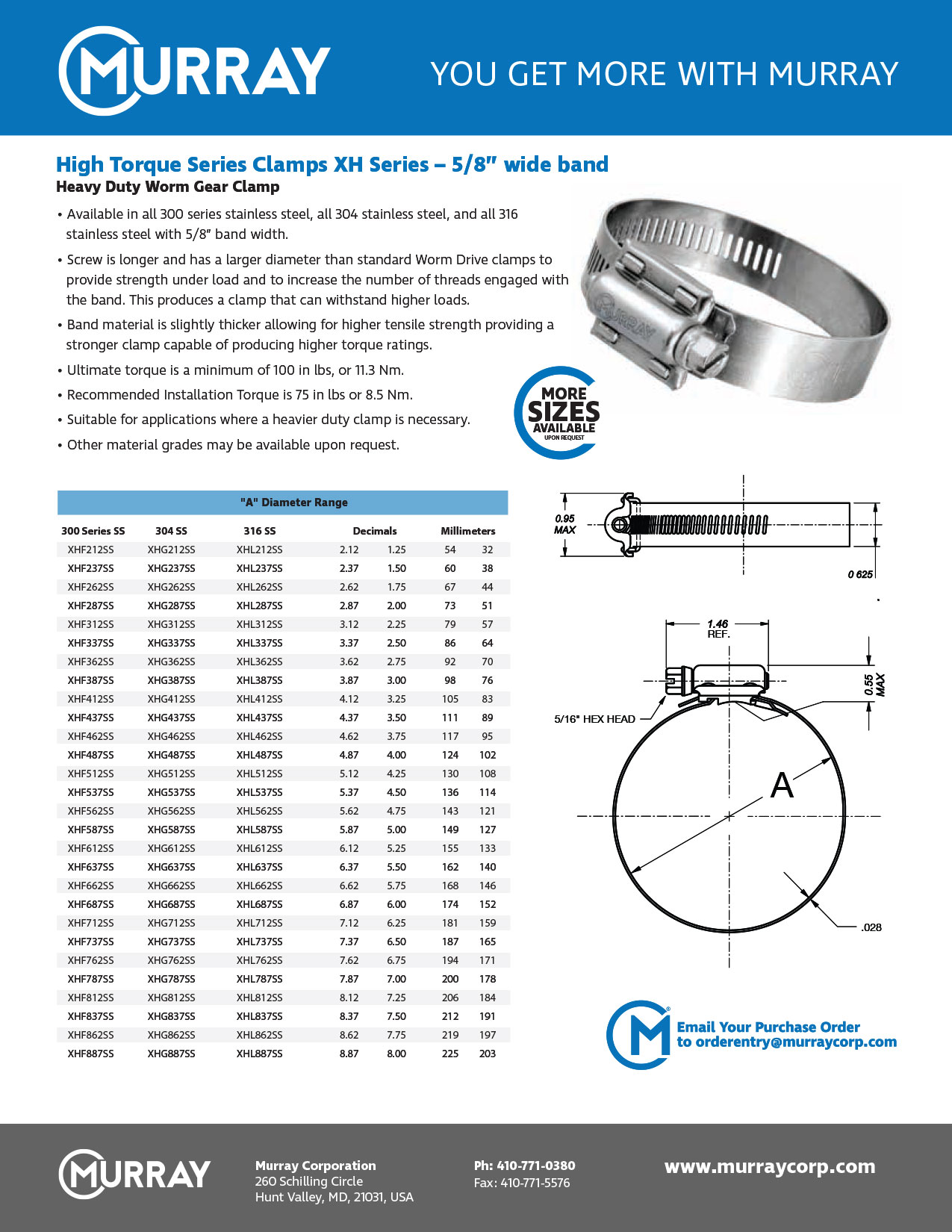

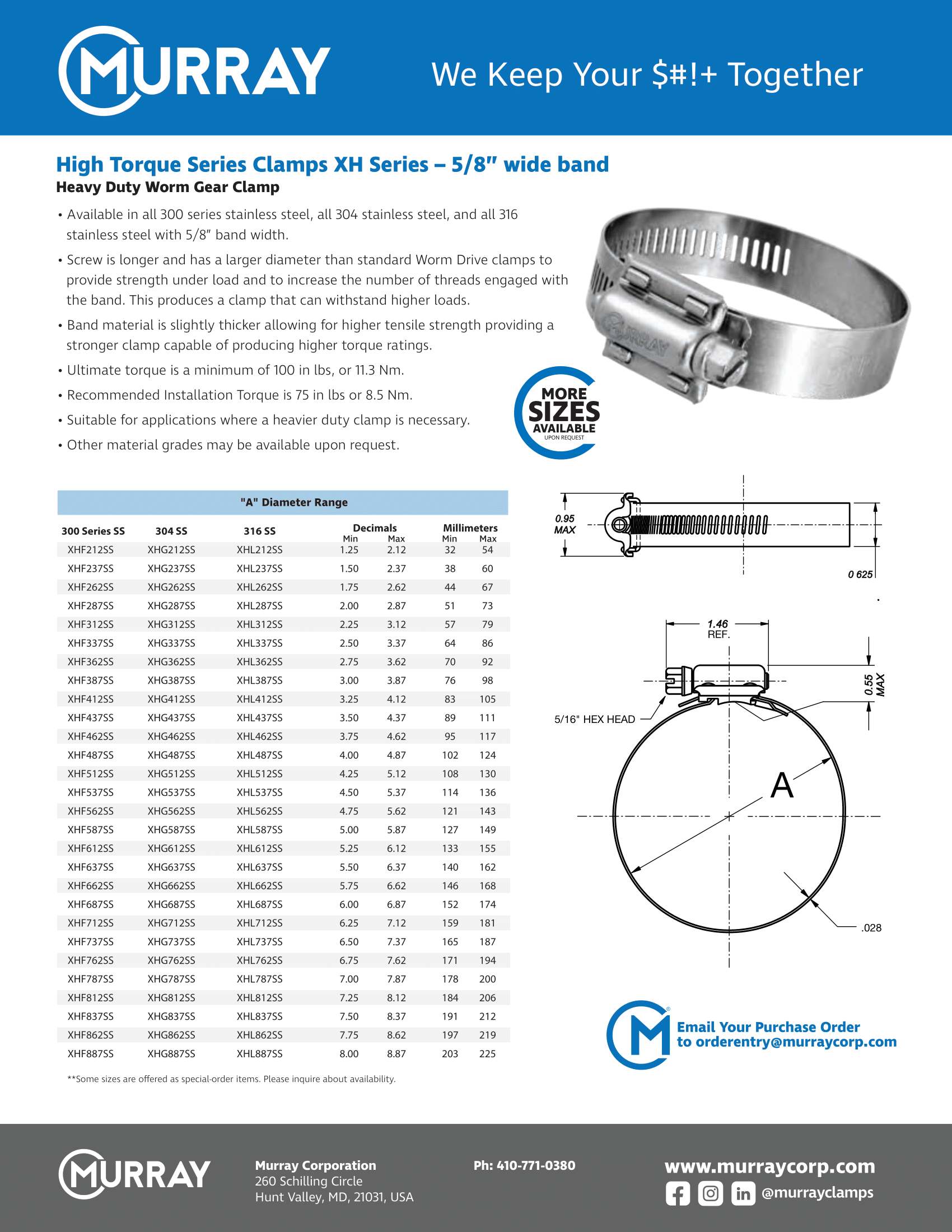

PDF Specification Sheet

Download PDF

XH High Torque Series Clamps — Heavy-Duty Screw Type Clamping

Murray Corporation manufactures the XH high torque series clamps, engineered for applications that demand significantly more clamping force than standard worm drive clamps can deliver. The XH series features a wider band, heavier construction, and a reinforced screw mechanism designed to achieve high torque without band distortion or fastener failure.

Design and Construction

The XH high torque clamp builds on the proven worm drive clamp design but incorporates several engineering enhancements for heavy-duty performance. The extra-wide band distributes clamping force across a larger contact area, improving seal integrity and reducing the risk of hose extrusion under pressure. The heavier gauge stainless steel band resists deformation under the higher torque loads required for demanding applications. The reinforced housing and screw mechanism prevent distortion during high-torque installation, ensuring consistent performance.

Key Features and Benefits

Murray's XH high torque clamps deliver high clamping force that exceeds standard worm drive clamp capabilities. The wide band distributes load evenly to prevent hose damage and improve sealing. Heavy-gauge stainless steel construction withstands demanding industrial environments. The reinforced screw mechanism handles high installation torques without stripping or deformation. And the standard worm drive operation allows installation with common tools.

Applications

XH high torque series clamps are used in applications where standard screw-type clamps do not provide sufficient clamping force. Common applications include heavy-duty truck and off-highway vehicle coolant, air intake, and exhaust connections, industrial process piping and fluid transfer systems, marine engine and plumbing connections, mining and construction equipment fluid lines, agricultural pump discharge and irrigation mains, and municipal water and wastewater systems.

The XH series bridges the gap between standard worm drive clamps and T-bolt clamps, providing high clamping force with the adjustability and ease of installation that worm drive users are accustomed to.

Contact Murray Corporation or request a quote to discuss your XH high torque clamp requirements. Our engineering team can help you select the right size for your application.

Quality and Availability

Every XH high torque series clamp is manufactured under Murray Corporation's ISO 9001:2015 certified quality management system, ensuring consistent dimensions, material quality, and clamping performance across production runs. With manufacturing facilities in the United States, Canada, India, and China, Murray provides the global capacity and deep inventory to support OEM production and distribution stocking. Our 98 percent on-time delivery rate gives customers confidence in Murray's reliability and product quality for even the most demanding industrial applications.
