Stack-Drive Constant Tension Worm Drive Clamps
SLHD - SLF Series

Stack  Drive Constant Tension Worm Drive Clamps

SLHD Series – Heavy Duty Constant Tension Worm Drive Clamp 5/8” wide band
SLF Series – Constant Tension Worm Drive Clamp 9/16” wide band
  • Murray Constant Tension Worm Drive clamps compensate for changes in temperature, ensuring a leak-free performance.
  • Bellville washer “stack” provides spring action to accommodate increases/decreases in joint diameter, preventing loosening and loss of clamp load due to temperature fluctuations.
  • Typical uses are in heavy duty truck, high performance automotive, marine, and severe duty industrial applications.
  • SLHD Series Material – Band, Housing and Washers are 300 grade stainless steel, and Screw is 400 series stainless steel. Other material combinations available upon request. Band width is 5/8”. Liner is a welded shield to prevent soft hose from protruding through the band slots.
  • SLF Series Material – Band and Housing are 304 stainless steel, Washers are 301 stainless steel, and the screw is 400 series stainless steel. Other material combinations available upon request. Band width is 9/16”. Liner is an extended band to prevent soft hose from protruding through the band slots.
Specifications
Clamp Size Chart

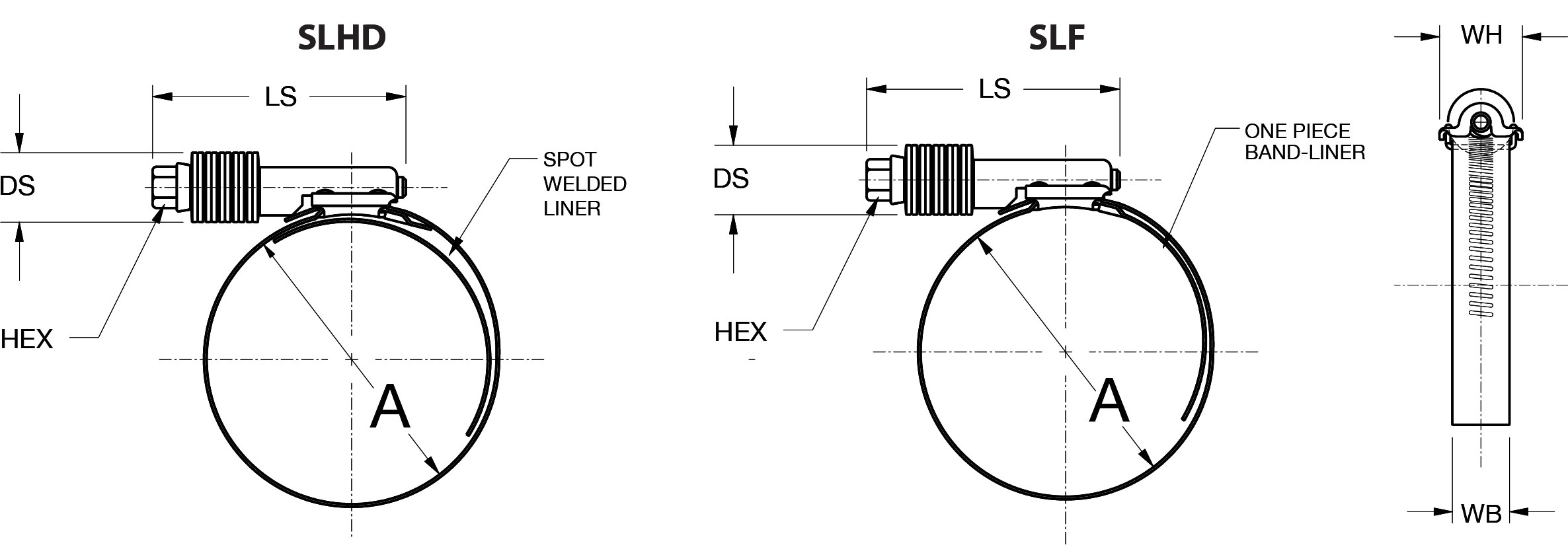

Part Number Size Number "A" Diameter Range
Millimeters Inches
Min. Max. Min. Max.
SLHD212SS4C 212 32 54 1.25 2.13
SLHD262SS4C 262 44 67 1.75 2.63
SLHD312SS4C 312 57 79 2.25 3.13
SLHD362SS4C 362 70 92 2.75 3.63
SLHD412SS4C 412 83 105 3.25 4.13
SLHD462SS4C 462 95 117 3.75 4.63
SLHD512SS4C 512 108 130 4.25 5.13
SLHD562SS4C 562 121 143 4.75 5.63
SLHD612SS4C 612 133 156 5.25 6.13
SLHD662SS4C 662 146 168 5.75 6.63
SLHD712SS4C 712 159 181 6.25 7.13
SLHD762SS4C 762 171 194 6.75 7.63
SLHD812SS4C 812 184 206 7.25 8.13
SLHD862SS4C 862 197 219 7.75 8.63
SLHD912SS4C 912 210 232 8.25 9.13
    Min. Max. Min. Max.
SLF10SS4C 10 14 27 0.56 1.06
SLF12SS4C 12 17 32 0.69 1.25
SLF16SS4C 16 21 38 0.81 1.50
SLF20SS4C 20 25 44 1.00 1.75
SLF24SS4C 24 27 51 1.06 2.00
SLF28SS4C 28 33 57 1.31 2.25
SLF32SS4C 32 40 64 1.56 2.50
SLF36SS4C 36 46 70 1.81 2.75
SLF40SS4C 40 52 76 2.06 3.00
SLF44SS4C 44 59 83 2.31 3.25
SLF48SS4C 48 65 89 2.56 3.50
SLF52SS4C 52 71 95 2.81 3.75

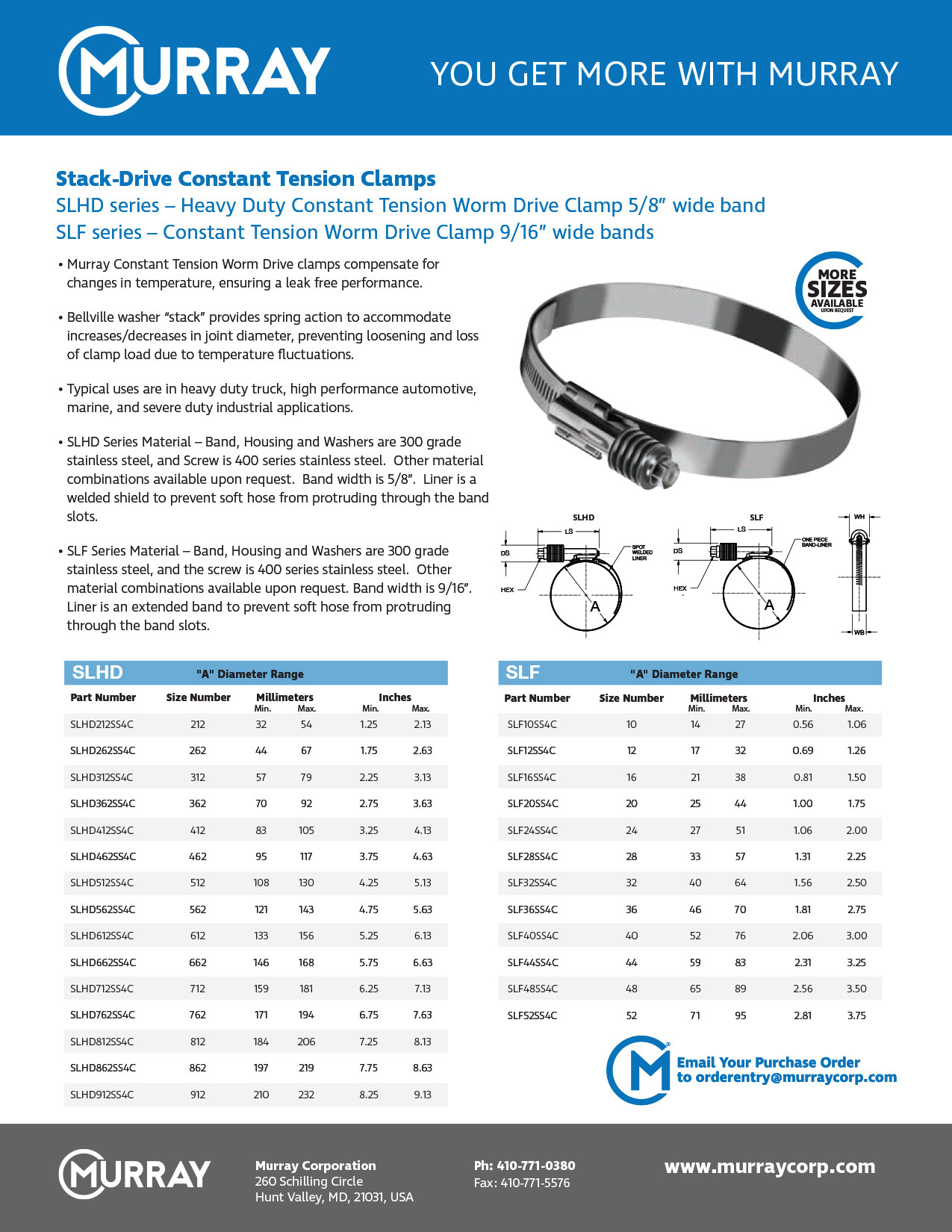

PDF Specification Sheet

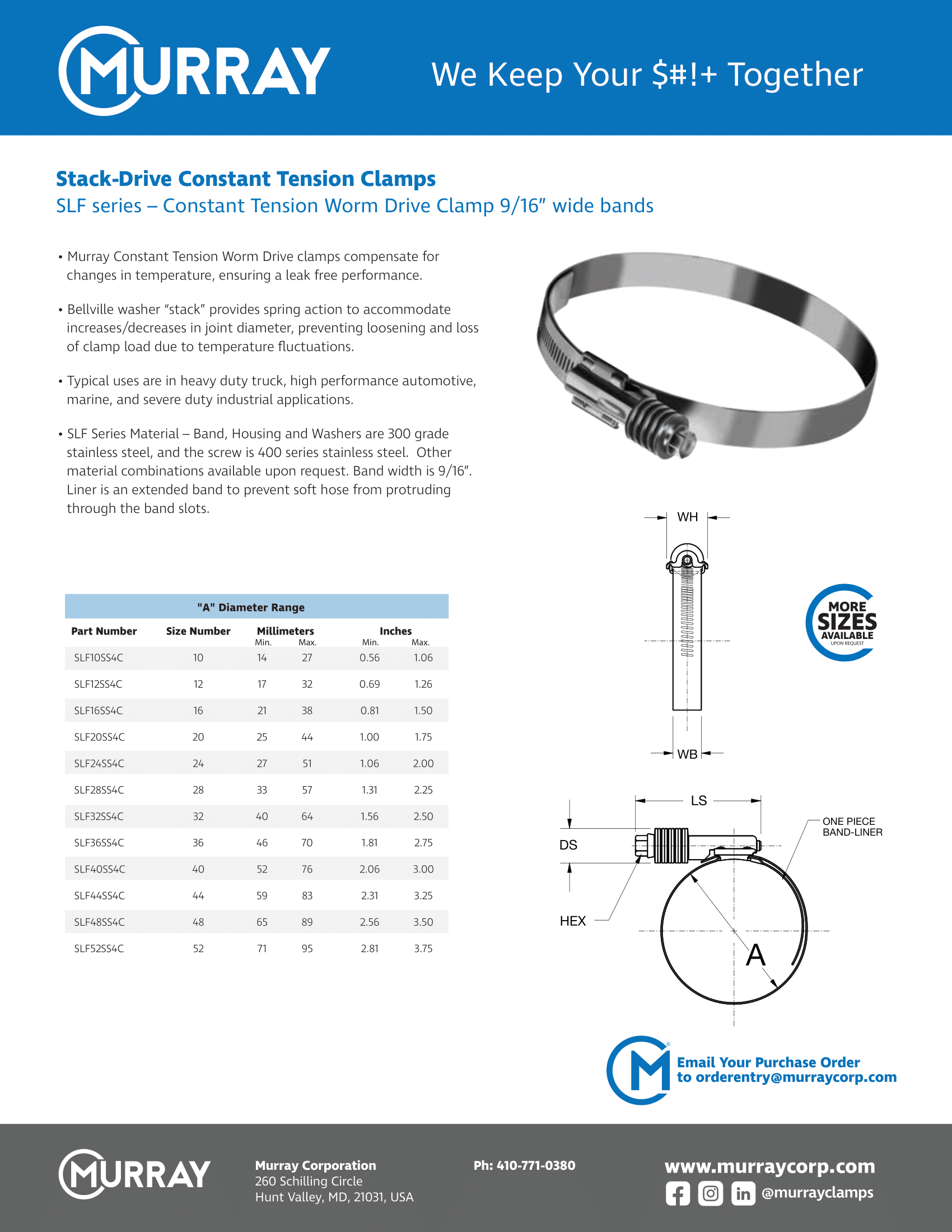

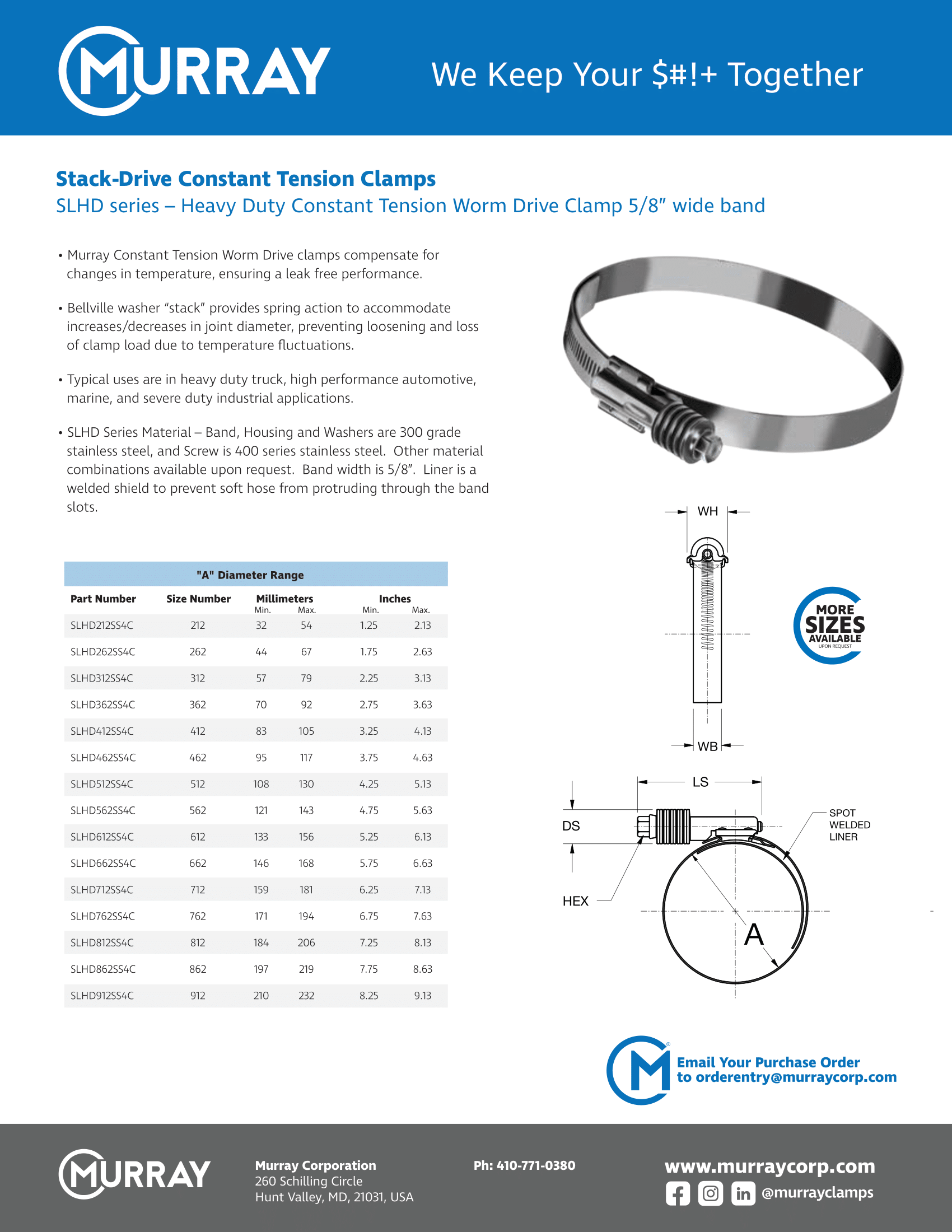

Stack-Drive Constant Tension Worm Drive Clamps – SLHD & SLF Series
