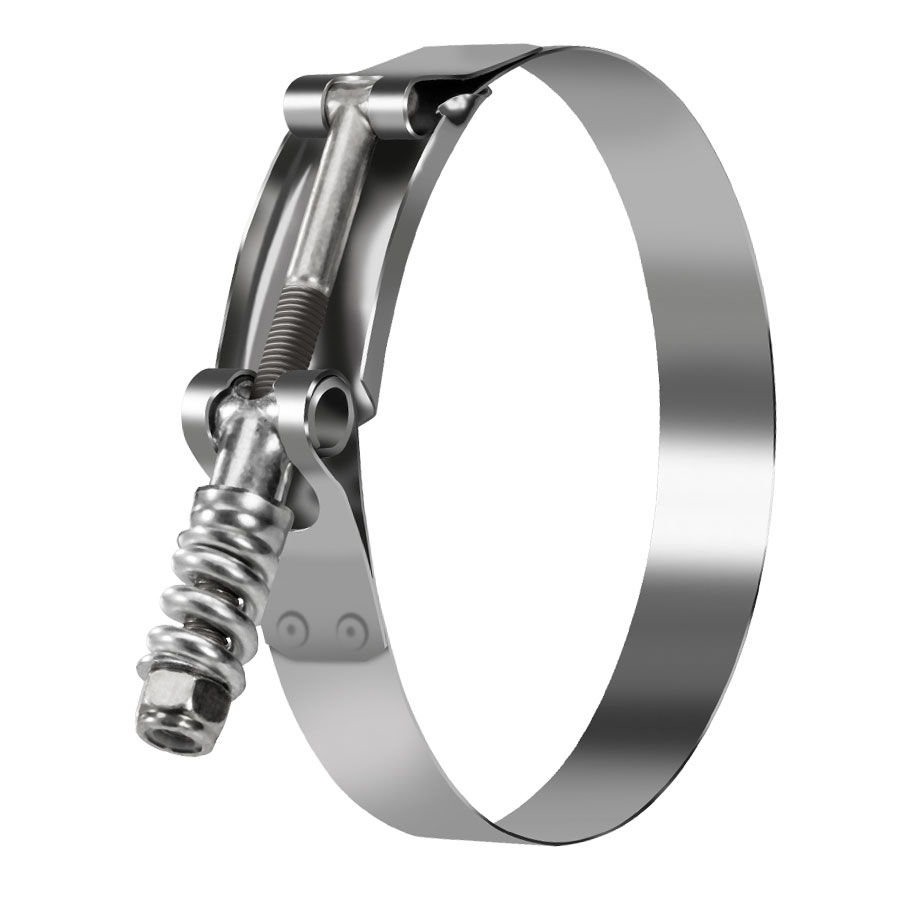

HD & SS Spring-Loaded T-Bolt Clamps

Murray Corporation’s Heavy Duty Spring Loaded T-Bolt Clamps offer a high performing sealing solution in demanding applications with highly fluctuating temperatures and pressure. Our HD and 300 SS spring-loaded band clamps automatically compensate for thermal expansion and contraction of hose or fitting connections to maintain uniform sealing pressure for a positive, reliable seal. The constant tension design helps prevent loose connections and leaks due to temperature fluctuations in critical applications.

Benefits of Spring Loaded T-Bolts

The following are some of the benefits and features of our Spring Loaded T-Bolt Clamp:

Auto-adjusting diameter helps maintain constant tension throughout extremely low or very high temperatures and thermal cycling
Spring-loaded design provides constant band tension and tight fit without needing adjustments
Durable, long-lasting design that withstands thermal stress and provides a high level of vibration, shock, temperature, and corrosion resistance
Rounded edges reduce the risk of damage to parts being clamped, including hoses in critical applications
300 series stainless steel band with zinc plated self-locking nut, bolt and spring

As a spring loaded T-bolt clamp manufacturer, we offer high-quality clamps that provide leak-free sealing and superior performance in tough conditions, such as turbo and exhaust applications. Our production process controls ensure product consistency and reliability in even the most demanding conditions.

Applications Using Spring Loaded T-Bolts

We provide a wide range of clamp diameters, we have the expertise and experience to design, engineer, and manufacture custom clamps to meet your specific application. Common industries using spring t-bolts include automotive, marine, and more!

Specifications

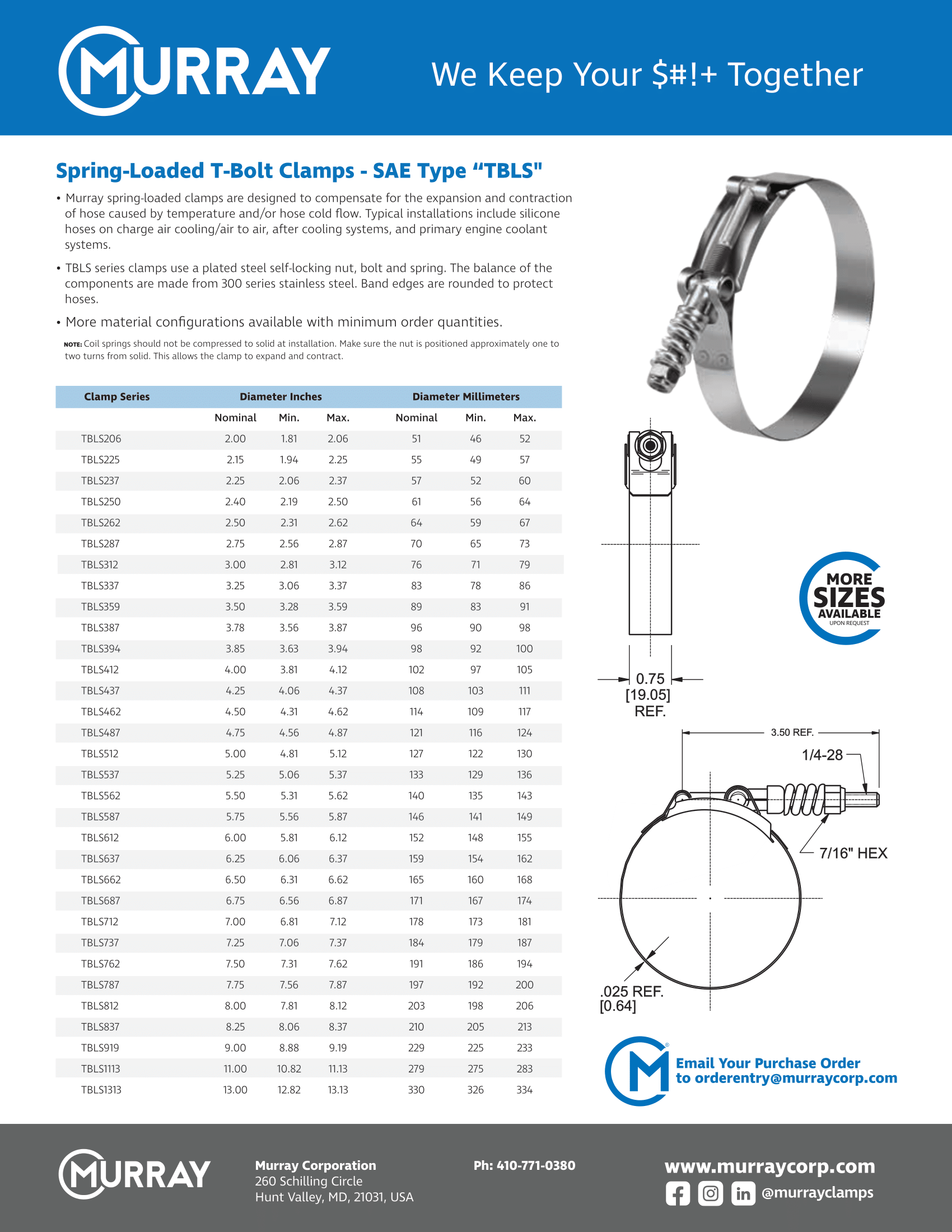

PDF Specification Sheet

Download PDF

Clamp Size Chart

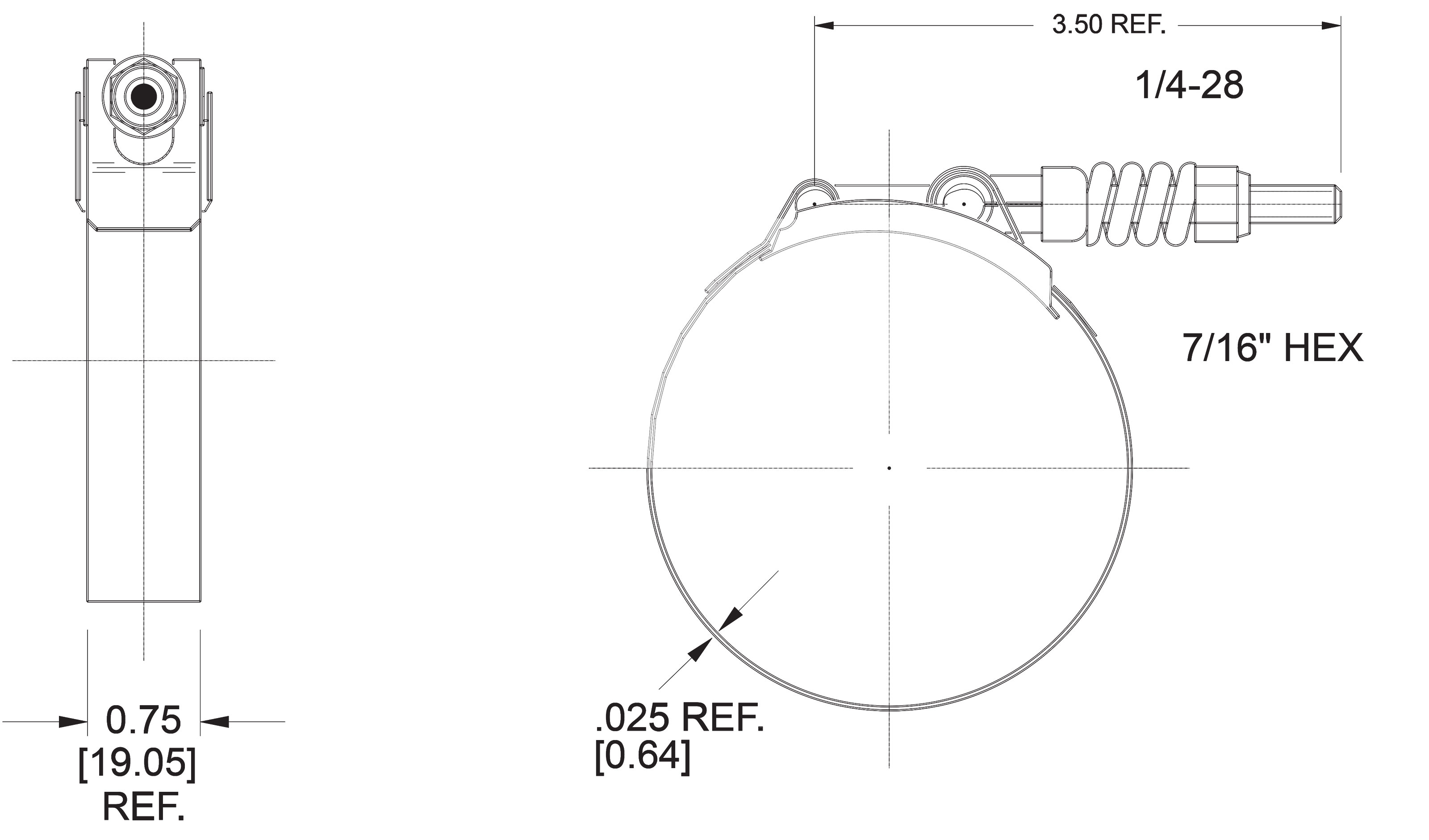

Technical drawing showing front and side views of a cylindrical component with dimensions 0.75 inches width, 3.50 inches length, 1/4-28 threaded end, 7/16 inch hexagonal section, and 0.025 inch thickness reference.

Zinc Plated Nut, Bolt & Spring	Dia. Inches			Dia. Millimeters
Zinc Plated Nut, Bolt & Spring	Nominal	Min.	Max.	Nominal	Min.	Max.
TBLS206	2.00	1.81	2.06	51	46	52
TBLS225	2.15	1.94	2.25	55	49	57
TBLS237	2.25	2.06	2.37	57	52	60
TBLS250	2.40	2.19	2.50	61	56	64
TBLS262	2.50	2.31	2.62	64	59	67
TBLS287	2.75	2.56	2.87	70	65	73
TBLS312	3.00	2.81	3.12	76	71	79
TBLS337	3.25	3.06	3.37	83	78	86
TBLS359	3.50	3.28	3.59	89	83	91
TBLS387	3.78	3.56	3.87	96	90	98
TBLS394	3.85	3.63	3.94	98	92	100
TBLS412	4.00	3.81	4.12	102	97	105
TBLS437	4.25	4.06	4.37	108	103	111
TBLS462	4.50	4.31	4.62	114	109	117
TBLS487	4.75	4.56	4.87	121	116	124
TBLS512	5.00	4.81	5.12	127	122	130
TBLS537	5.25	5.06	5.37	133	129	136
TBLS562	5.50	5.31	5.62	140	135	143
TBLS587	5.75	5.56	5.87	146	141	149
TBLS612	6.00	5.81	6.12	152	148	155
TBLS637	6.25	6.06	6.37	159	154	162
TBLS662	6.50	6.31	6.62	165	160	168
TBLS687	6.75	6.56	6.87	171	167	174
TBLS712	7.00	6.81	7.12	178	173	181
TBLS737	7.25	7.06	7.37	184	179	187
TBLS762	7.50	7.31	7.62	191	186	194
TBLS787	7.75	7.56	7.87	197	192	200
TBLS812	8.00	7.81	8.12	203	198	206
TBLS837	8.25	8.06	8.37	210	205	213
TBLS919	9.00	8.88	9.19	229	225	233
TBLS1113	11.00	10.82	11.13	279	275	283
TBLS1313	13.00	12.82	13.13	330	326	334

Text stating More Sizes Available Upon Request inside a partial blue circular border.

Spring-Loaded T-Bolt Clamps — TBLS Series Constant Tension T-Bolt Clamps

Murray Corporation manufactures the TBLS series spring-loaded T-bolt clamps, combining the high clamping force of a T-bolt design with an integrated spring mechanism that maintains constant tension as hoses expand and contract due to temperature changes. The TBLS series is the ideal solution for applications where thermal cycling, hose relaxation, or vibration would cause a standard T-bolt clamp to gradually lose its grip.

How Spring-Loaded T-Bolt Clamps Work

The TBLS spring-loaded T-bolt clamp operates on the same principle as a standard T-bolt clamp, using a T-shaped bolt and nut to draw a wide stainless steel band around the hose. The critical difference is the addition of a precision-calibrated spring element between the bolt head and the band. This spring compresses during installation and then continuously exerts force on the band as conditions change.

When the hose heats up and expands, the spring extends slightly to allow the band to grow with the hose while maintaining clamping pressure. When the hose cools and contracts, the spring compresses the band back to a tighter diameter. This dynamic response keeps the connection sealed through repeated thermal cycles without manual retightening.

Key Features and Benefits

Murray's TBLS spring-loaded T-bolt clamps deliver high clamping force combined with constant tension capability. The spring mechanism automatically compensates for thermal expansion and contraction. The wide stainless steel band distributes load evenly to prevent hose damage. The design maintains seal integrity under vibration and mechanical shock. And stainless steel construction provides corrosion resistance for harsh operating environments.

Applications

Spring-loaded T-bolt clamps are the preferred choice for thermally cycling applications, including turbocharger and intercooler silicone hose connections, heavy-duty truck coolant and air intake systems, automotive performance and racing cooling systems, marine engine cooling and exhaust connections, industrial process lines subject to temperature fluctuations, and HVAC chilled and hot water connections.

Contact Murray Corporation or request a quote to discuss your TBLS spring-loaded T-bolt clamp requirements.

Size Range and Ordering

Murray manufactures TBLS spring-loaded T-bolt clamps in a comprehensive size range to fit common hose and tube diameters. Custom sizes and spring specifications are available for specialized applications. All products are manufactured under our ISO 9001:2015 certified quality management system, ensuring consistent dimensions, spring performance, and clamping force across production lots. With manufacturing facilities in four countries and a 98 percent on-time delivery rate, Murray provides reliable supply for both OEM production and distribution stocking programs.
