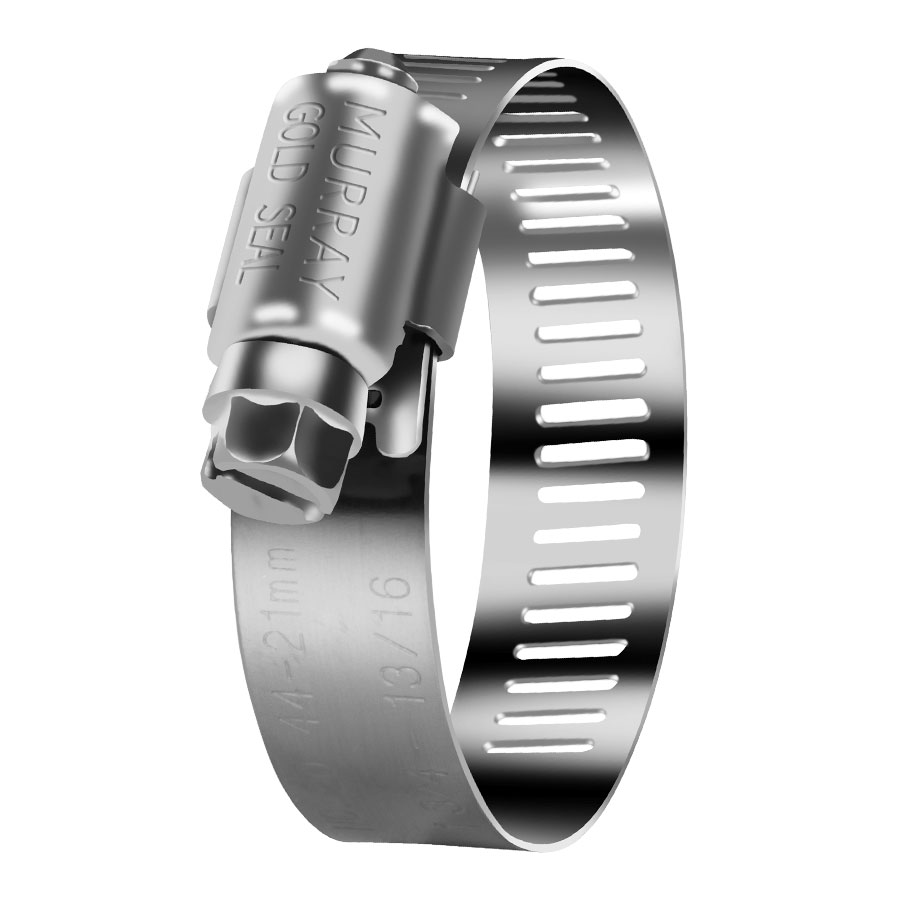

Our worm drive hose clamps are known for their exceptional reliability, versatility, and ease of use in a wide range of applications. Designed to provide a secure and leak-proof connection, these clamps are ideal for handling varying pressure and temperature conditions. The adjustable mechanism allows for a precise fit, ensuring a tight seal on hoses, pipes, and tubes. Whether used in automotive, industrial, agricultural, or marine settings, our worm drive clamps offer dependable performance and long-lasting durability, making them a go-to solution for diverse industrial needs.

The Dual Bead Shield® Constant Tension Clamp is designed for air-to-air and coolant applications, offering superior sealing and protection for soft hoses in demanding environments. Its unique dual spring action, provided by the beads in the inner shield, compensates for temperature fluctuations and thermal cycling, preventing turbo hose blow-off. The exclusive Dual Bead Shield® increases sealing pressure and boosts performance by up to 30% compared to smooth liners. With flanged edges to protect soft hoses like silicone, this clamp is widely used in automotive, off-road, agriculture, heavy-duty, marine, exhaust systems, and turbo applications.

The XH High Torque Series Clamps are heavy-duty worm gear clamps designed to handle higher loads with a 5/8" band width. Made from 300, 304, and 316 stainless steel, these clamps feature a longer, larger diameter screw for increased strength and more thread engagement, providing superior torque capabilities. With a thicker band material for higher tensile strength, the XH Series offers a minimum ultimate torque of 100 in-lbs (11.3 Nm) and a recommended installation torque of 75 in-lbs (8.5 Nm). Ideal for applications requiring robust clamping force, other material grades are available upon request.

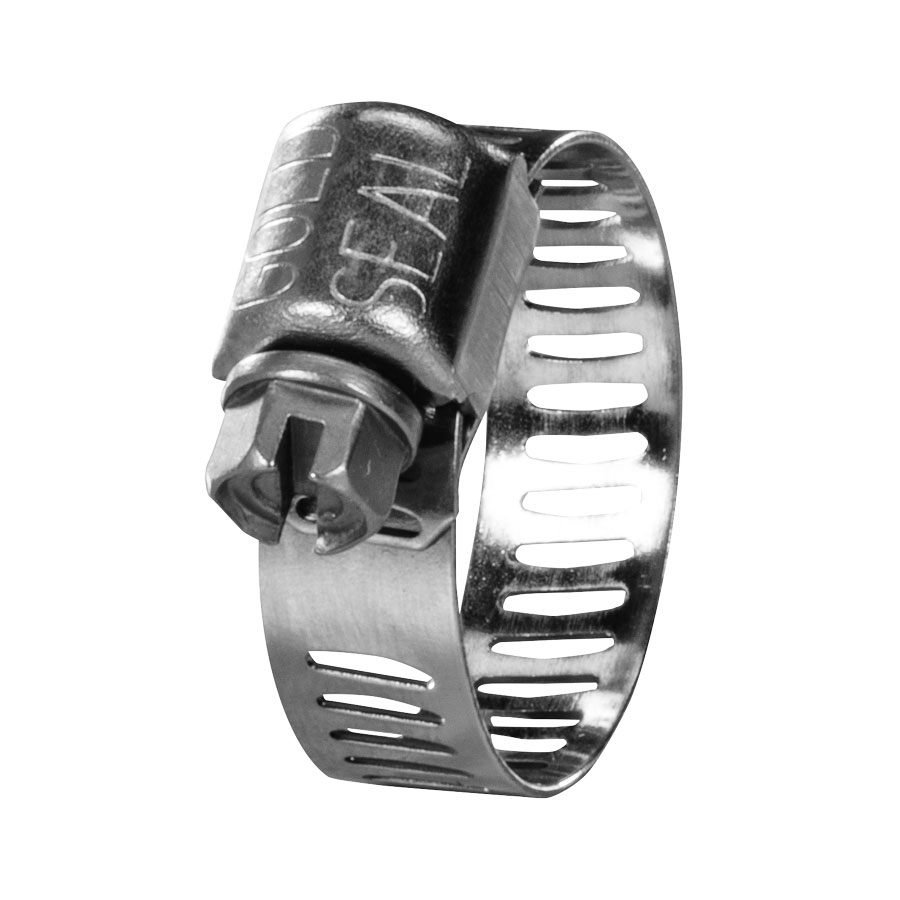

Stainless Steel Type "M" Clamps offer a lightweight, low-profile design that makes installation easy in confined spaces. The 5/16 Type "M" clamp delivers high sealing pressure with low installation torque. Available in three variations: the MM Series features 200 series stainless steel band with 100 series stainless steel housing and screw; the MMSS Series combines 200/300 series stainless steel band and housing with 400 series stainless steel screw; and the MMFSS Series is made entirely from 300 series stainless steel for maximum corrosion resistance and durability. These clamps are perfect for applications requiring compact, reliable performance.

Embossed worm drive clamps, also known as worm gear clamps, are designed to meet or exceed the DIN 3017 standard. These clamps feature a general-purpose, non-perforated band that is particularly effective for clamping soft silicone hoses. Murray’s embossed clamps are specifically engineered to protect soft hose materials like silicone rubber from shearing and fraying. The material grade and size are clearly stamped on the band for easy identification. Available in 304SS/W4 and 316SS/W5 stainless steel grades, with additional W1 and W2 grades available upon request, these clamps come in 9mm and 12mm band widths.
