Name: V-Band Clamps & Couplings
Brand: Murray Corporation

Shiny metal V-band clamp with a locking nut and hinge mechanism.

V-Band Clamps & Couplings

Murray Corporation manufactures premium V-Band Clamps and couplings for flanged connections. Our V-Band Clamps are made with high-quality materials and pass extensive testing to ensure your air or liquid connections are held tightly together in a leak-proof clamp.

Our quality control processes ensure you consistently receive a high-quality V-Band Clamp order after order.

V-Band Clamp Properties

V-Band Clamps are designed for challenging, heavy-duty applications where they have proven their high-performance capabilities. They provide high strength, reliability, and corrosion resistance.

Murray Corp offers custom sizing for V-Band Clamps, manufacturing them in a variety of thicknesses and widths, or with various nut and bolt combinations to fit your exact application.

V-Band Clamp Materials

V-Band Clamps are available in various grades of stainless steel and zinc-plated carbon steel. High performance materials like Inconel can be customized for your application and are available upon request. All materials used are made to AISI and other key global standards.

Industries We Serve

HD V-Band Clamps are engineered and designed for heavy duty trucks, automotive, high performance and racing, generator and marine industries. Their tight design makes them a perfect solution for decreased emissions.

Applications include:

Pumps
Engines
Exhaust systems
Emissions

Diesel particulate filters
Muffler assemblies
Telecommunication equipment and tubing

Filters
Food and chemical processing equipment
Turbochargers

Requirements and Guarantees

Murray Corp has an ISO Certification and our Quality Management System ensures you get the highest quality products order after order.

Specifications

Clamp Size Chart

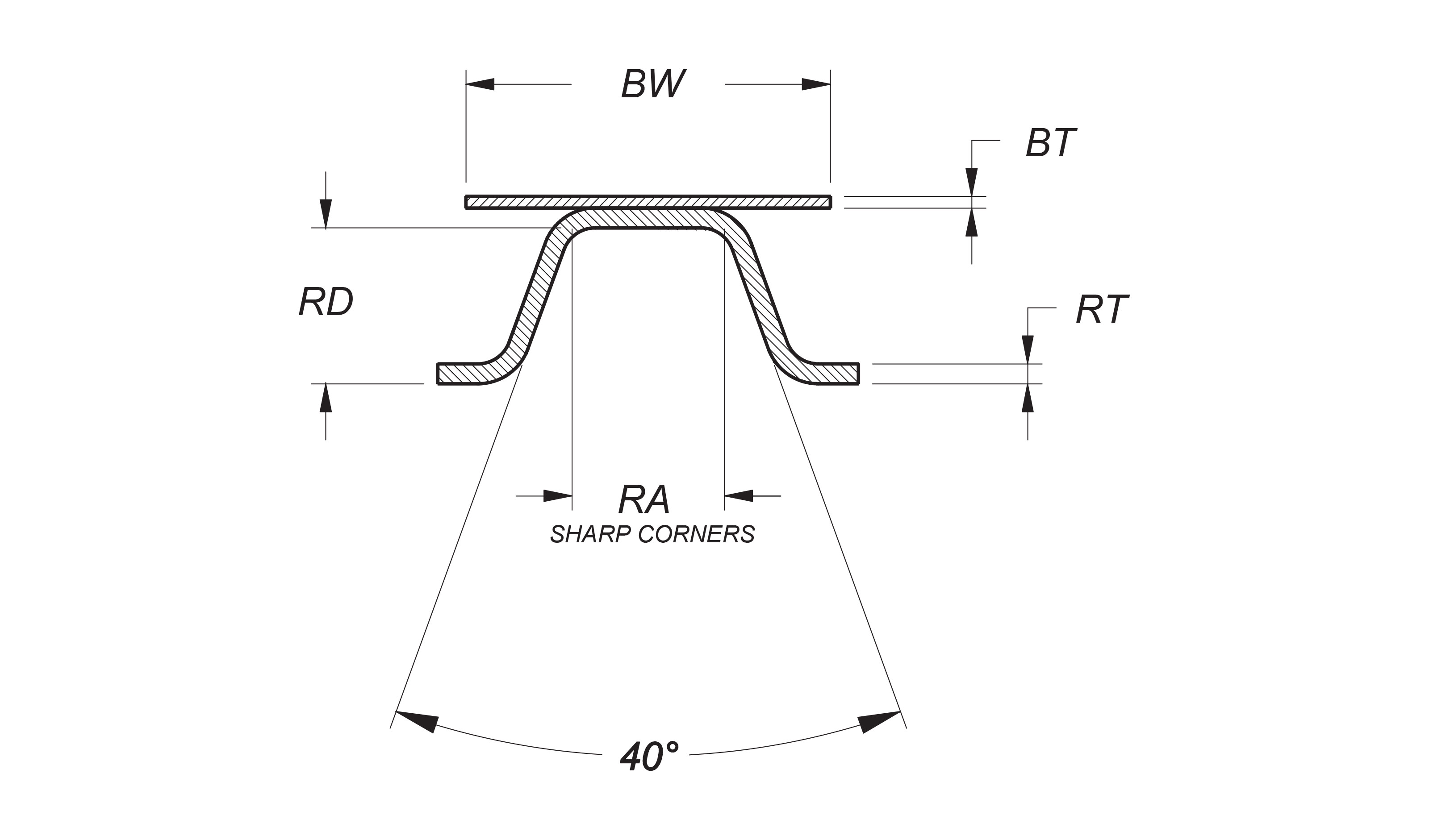

Technical cross-sectional drawing of a shaped metal bracket with labeled dimensions BW, BT, RD, RT, and RA, and a 40-degree angle at the base corners.

P/N	Nominal Dia.	Flange Dia.	Retainer			Band
			RA	RT	RD	BW	BT
TBV-M020-0321	3.210	3.106	0.262	0.050	0.141	0.750	0.031
TBV-M040-0382	3.820	3.695	0.207	0.080	0.281	0.875	0.050
TBV-M050-0388	3.880	3.755	0.400	0.050	0.281	0.875	0.031
TBV-M090-0425	4.250	4.125	0.400	0.050	0.281	0.875	0.031
TBV-M100-0450A	4.500	4.375	0.207	0.080	0.281	0.875	0.050
TBV-M150-0475	4.750	4.625	0.400	0.050	0.281	0.875	0.031
TBV-M160-0481	4.810	4.685	0.207	0.080	0.281	0.875	0.050
TBV-M200-0525	5.250	5.156	0.262	0.050	0.141	0.750	0.031
TBV-M240-0588	5.880	5.755	0.400	0.050	0.281	0.875	0.031
TBV-M260-0592	5.920	5.795	0.293	0.090	0.296	0.875	0.062

Text stating More Sizes Available Upon Request inside a partial blue circular border.

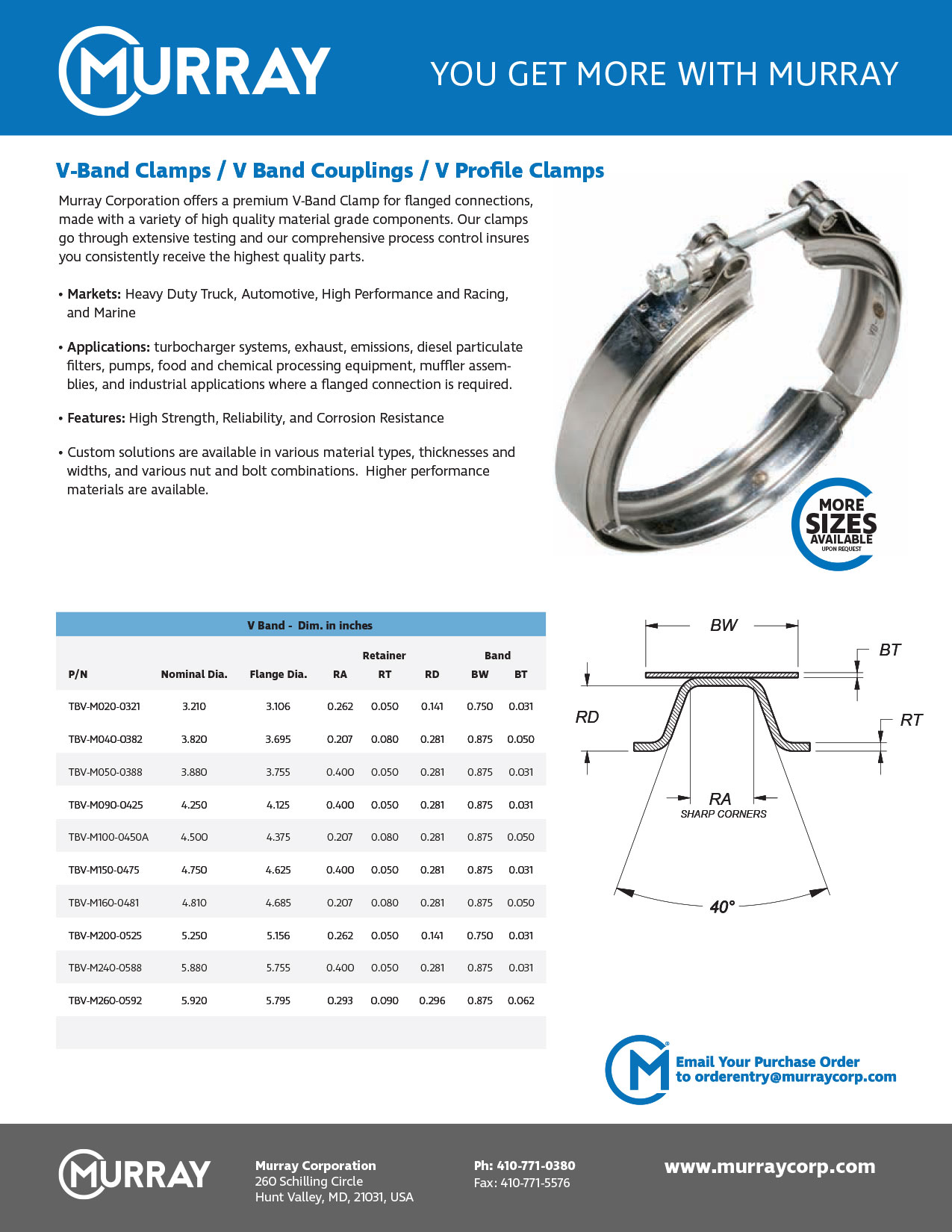

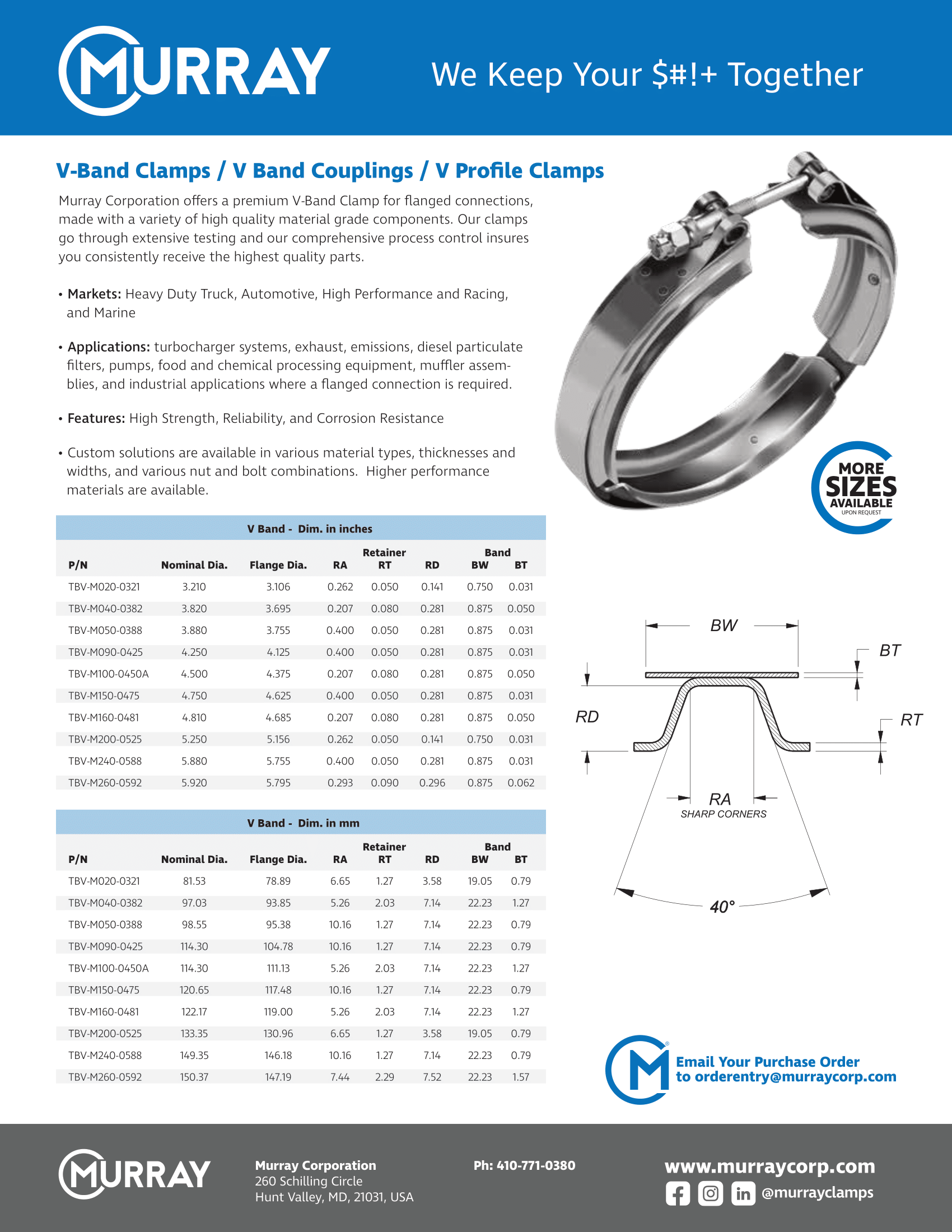

PDF Specification Sheet

Download PDF

V-Band Clamps and Couplings — Quick-Connect Solutions for Flanged Connections

Murray Corporation manufactures V-band clamps and couplings designed for secure, quick-connect and quick-disconnect capability on flanged pipe and tube connections. V-band clamps are widely used in exhaust systems, turbocharger installations, industrial process piping, and any application where flanged connections need to be assembled and disassembled efficiently without compromising seal integrity.

How V-Band Clamps Work

A V-band clamp consists of a V-shaped stainless steel band that wraps around two mating flanges. When the clamp is tightened — typically using a T-bolt and nut mechanism — the V-profile wedges the flanges together, creating a strong axial force that pulls the joint tight and seals the connection. This design applies clamping force uniformly around the full circumference of the joint.

The key advantage of V-band clamps over welded or bolted flange connections is speed of assembly and disassembly. A single fastener secures the entire connection, allowing operators to make or break the joint in seconds. This is especially valuable in maintenance-intensive environments where connections need to be accessed regularly for inspection, cleaning, or component replacement.

Features and Benefits

Murray's V-band clamps and couplings offer uniform 360-degree clamping force for reliable sealing, single-fastener operation for fast assembly and disassembly, self-aligning design that simplifies installation, stainless steel construction for corrosion resistance and durability, vibration resistance for long-term reliability in mobile and industrial equipment, and high-temperature capability for exhaust and high-heat applications.

Applications

V-band clamps and couplings are used in a variety of demanding applications, including automotive and performance exhaust systems, turbocharger inlet and outlet connections, heavy-duty truck and off-highway vehicle exhaust piping, marine exhaust and engine systems, industrial process piping requiring frequent disassembly, aerospace and military fluid and exhaust connections, and power generation equipment.

Murray Corporation offers V-band clamps in a range of sizes and materials to fit standard flanged connections. Custom sizes and configurations are available. Contact us today or request a quote to discuss your V-band clamp requirements.

Materials and Quality

Murray manufactures V-band clamps and couplings from high-quality stainless steel for corrosion resistance and durability in high-temperature and harsh environments. All products are produced under our ISO 9001:2015 certified quality management system, ensuring dimensional accuracy and consistent clamping performance. With manufacturing facilities across four countries and a 98 percent on-time delivery rate, Murray provides the quality, capacity, and supply reliability that OEM, aftermarket, and industrial customers depend on. Our engineering team can also assist with custom V-band designs for non-standard flange dimensions and specialized applications.
