Stainless Steel Type “M” Clamps

Stainless Steel Type “M” Clamps

Type "M" industrial clamps utilize a lightweight, low profile, compact design that allows ease of installation in restricted applications. The 5/16 Type "M" Clamp generates significant sealing pressure with relatively low installation torque levels. Learn more about our stainless steel worm drive clamps below!
MM Series – 200/100 Series Stainless Steel Mini Worm Drive Clamp
Band is 200 series stainless steel and housing and screw are 100 series stainless steel
MMSS Series – 200/400 Series Stainless Steel Mini Worm Drive Clamps
Band and housing are 200/300 series stainless steel and screw is 400 series stainless steel
MMFSS Series – All 300 Grade Stainless Steel Mini Worm Drive Clamps.
Band, housing and screw are all 300 series stainless steel.

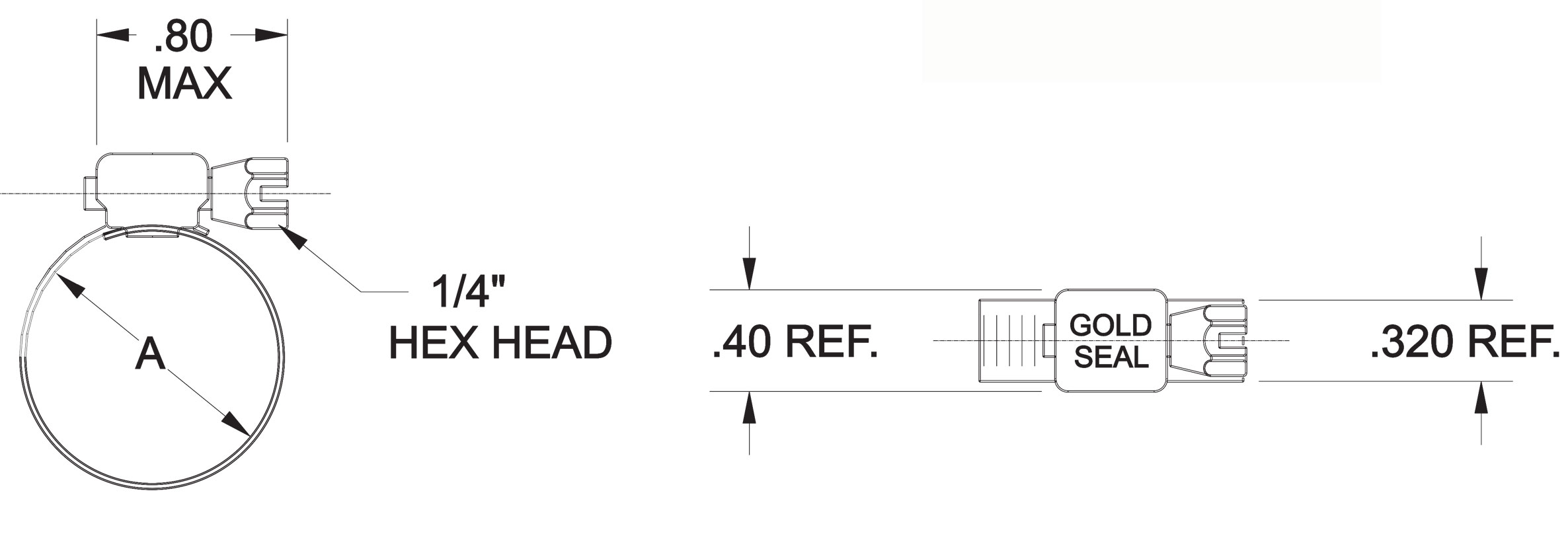

Clamp Size Chart
SAE Ref. No.

Clamp Part No. "A" Diameter Range
"100" Series Stainless Screws "400" Series Stainless Screws "300" Series Stainless Screws Decimals Inches Millimeters
Min. Max. Min. Max. Min. Max.

MM 3* MM 3 SS MMF 3 SS 0.25 0.50 1/4 1/2 6 13
4 MM 4 MM 4 SS MMF 4 SS 0.25 0.63 1/4 5/8 6 16
6/8 MM 5 MM 5 SS MMF 5 SS 0.31 0.91 5/16 29/32 8 23
10 MM 10* MM 10 SS MMF 10 SS 0.56 1.06 9/16 1-1/16 14 27

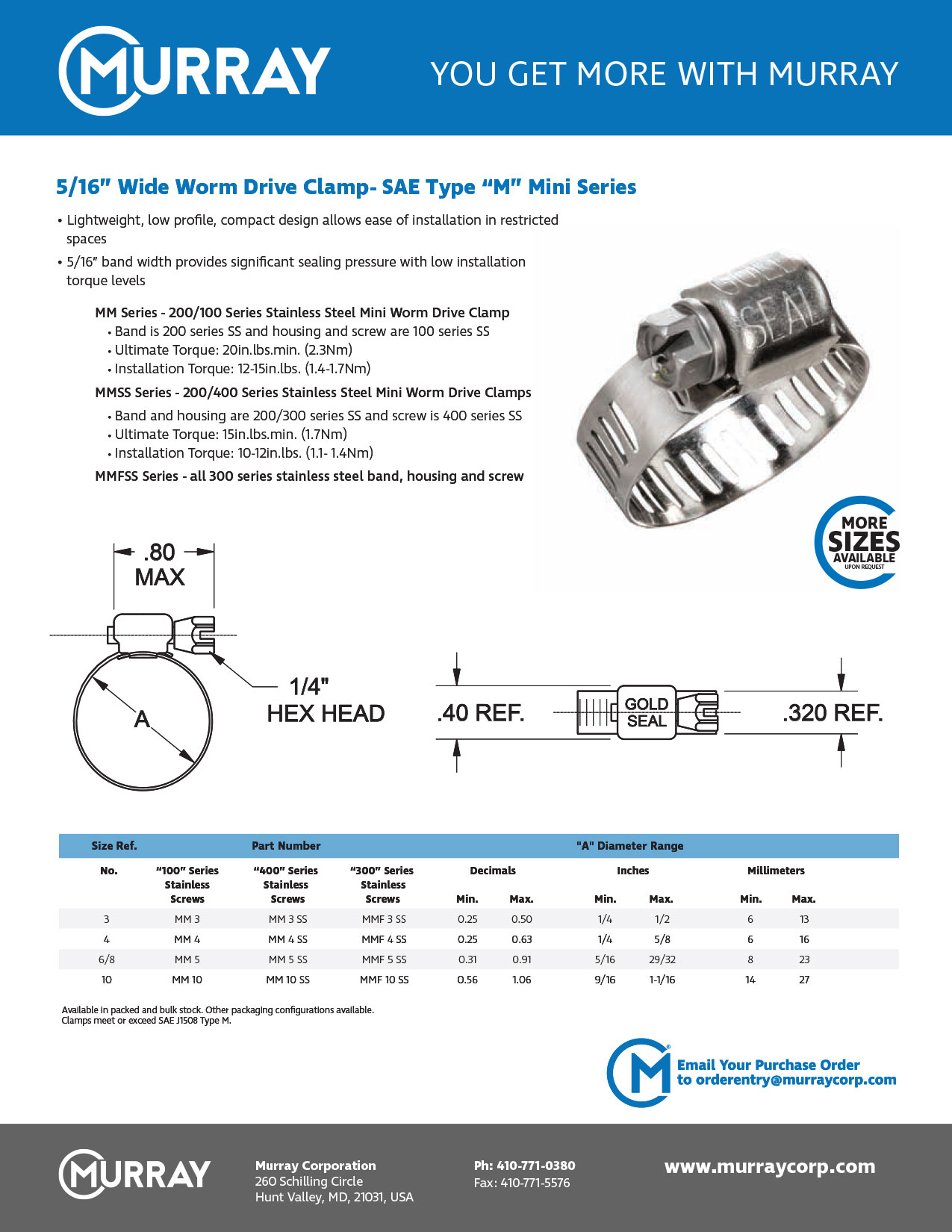

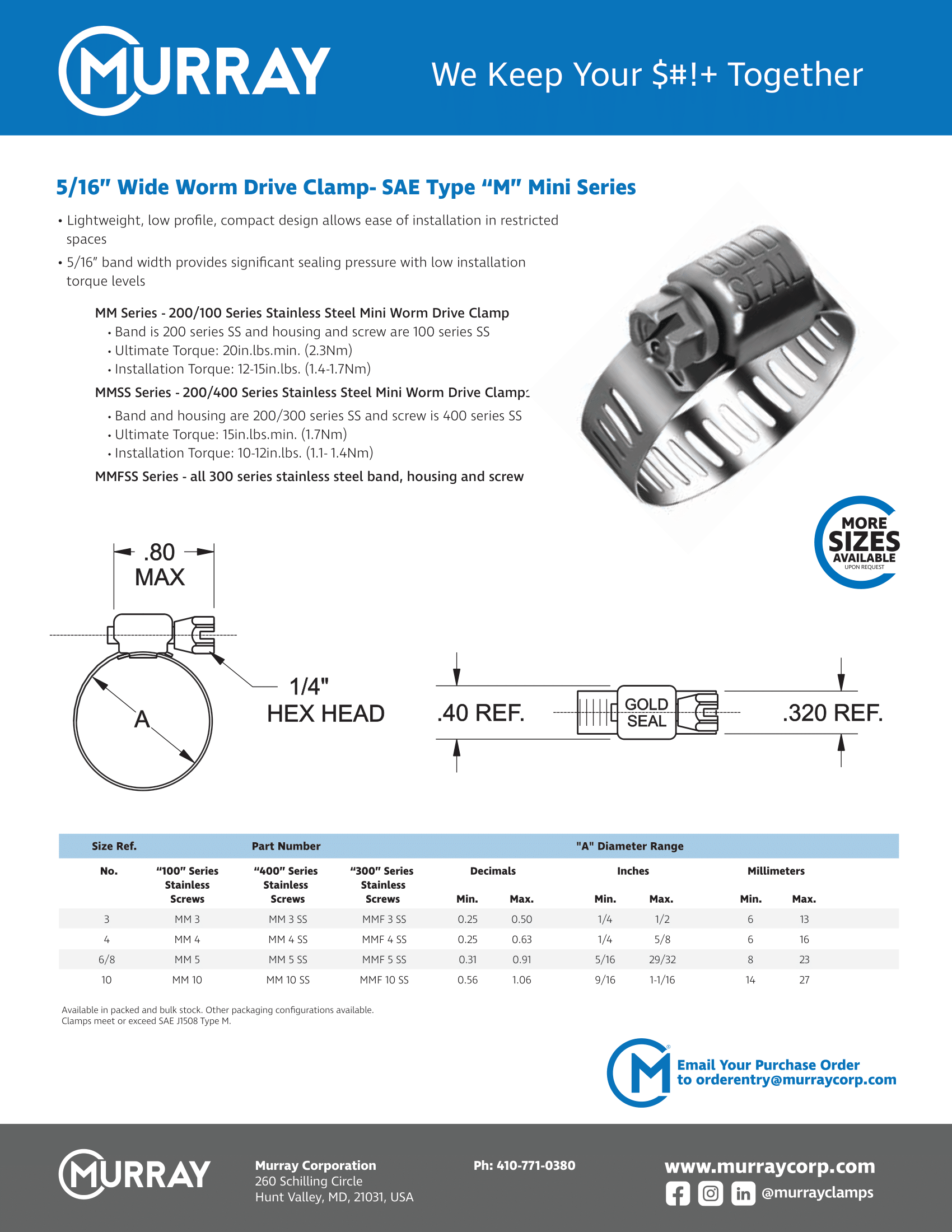

PDF Specification Sheet
