Worm Drive V-Band Clamp
WDV

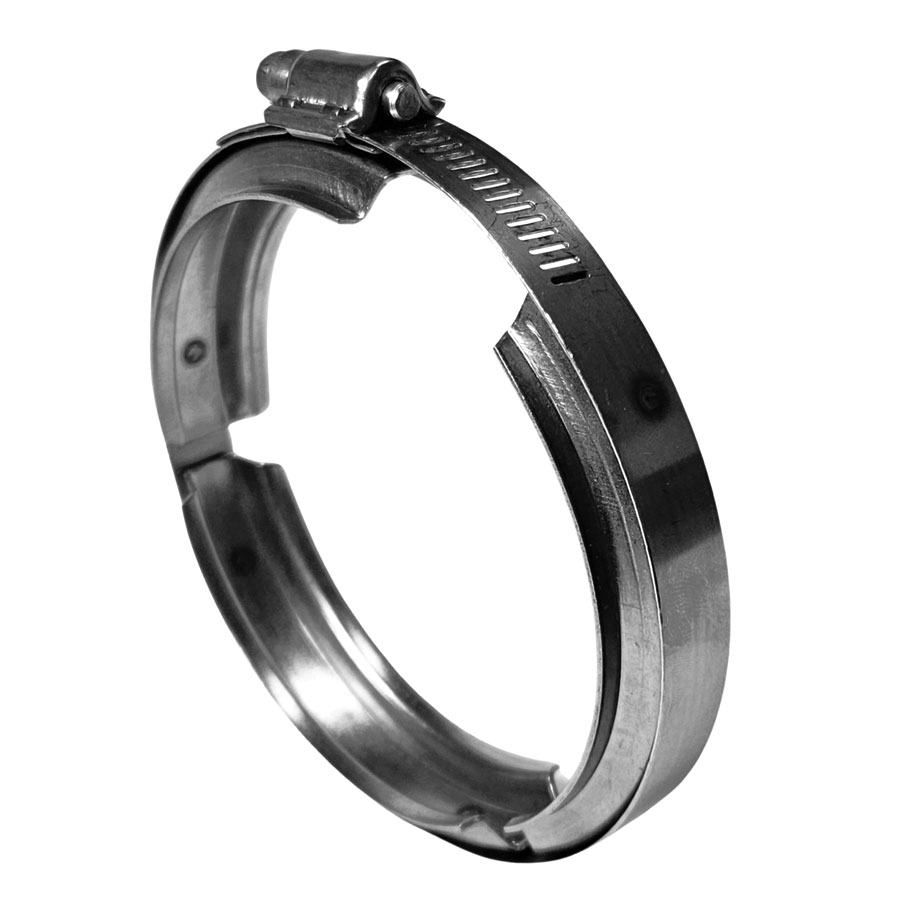

Worm Drive V-Band Clamp

Murray Corporation offers a premium Worm Drive V-Band Clamp for flanged connections, made with all 300 series stainless steel components. Our clamps go through extensive testing and our comprehensive process control insures you consistently receive the highest quality parts.
Markets:
Industrial and Agriculture applications where a  flanged connection is required.
Applications:
Liquid handling, manifold inductor assembly, agricultural sprayers, flanged cam lever couplings
Features:
Quick and Easy Assembly, 360° Sealing, Easy on/o  Installation, Eliminates need for threaded pipe connections
Requirements and Guarantees
Murray Corp has an ISO Certification and our Quality Management System ensures you get the highest quality products order after order.
Specifications
Clamp Size Chart

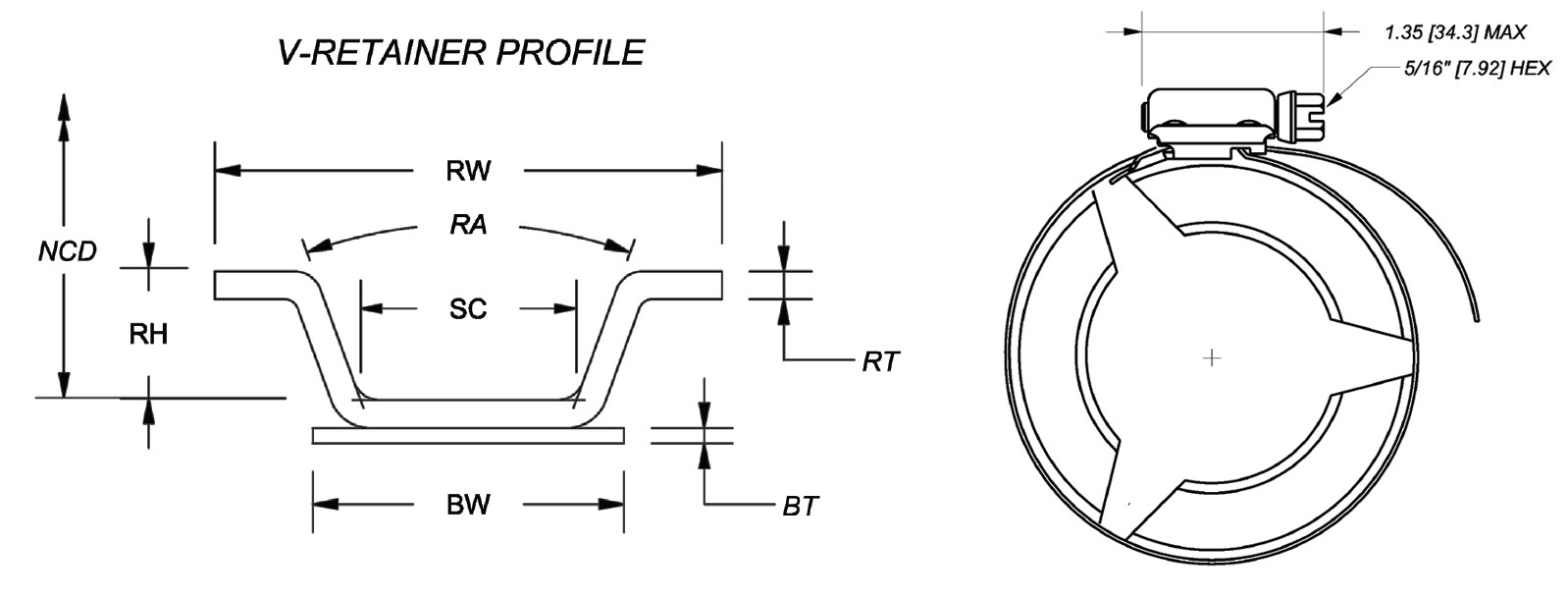

Technical drawing of a V-retainer profile showing a cross-sectional side view with labeled dimensions and a top view with a maximum width and hex key size.
P/N Nominal Dia. Retainer Band


RT SC RH RW RA BW BT
WDV-M001-0216 2.16 0.047 0.387 0.281 0.91 40" 0.028 0.563
WDV-M001-0319 3.19 0.047 0.387 0.281 0.91 40" 0.028 0.563
WDV-M001-0340 3.40 0.047 0.387 0.281 0.91 40" 0.028 0.563
WDV-M001-0456 4.56 0.047 0.387 0.281 0.91 40" 0.028 0.563
Blue circular badge with black text reading 'Choose the right size correct mattress for you'.

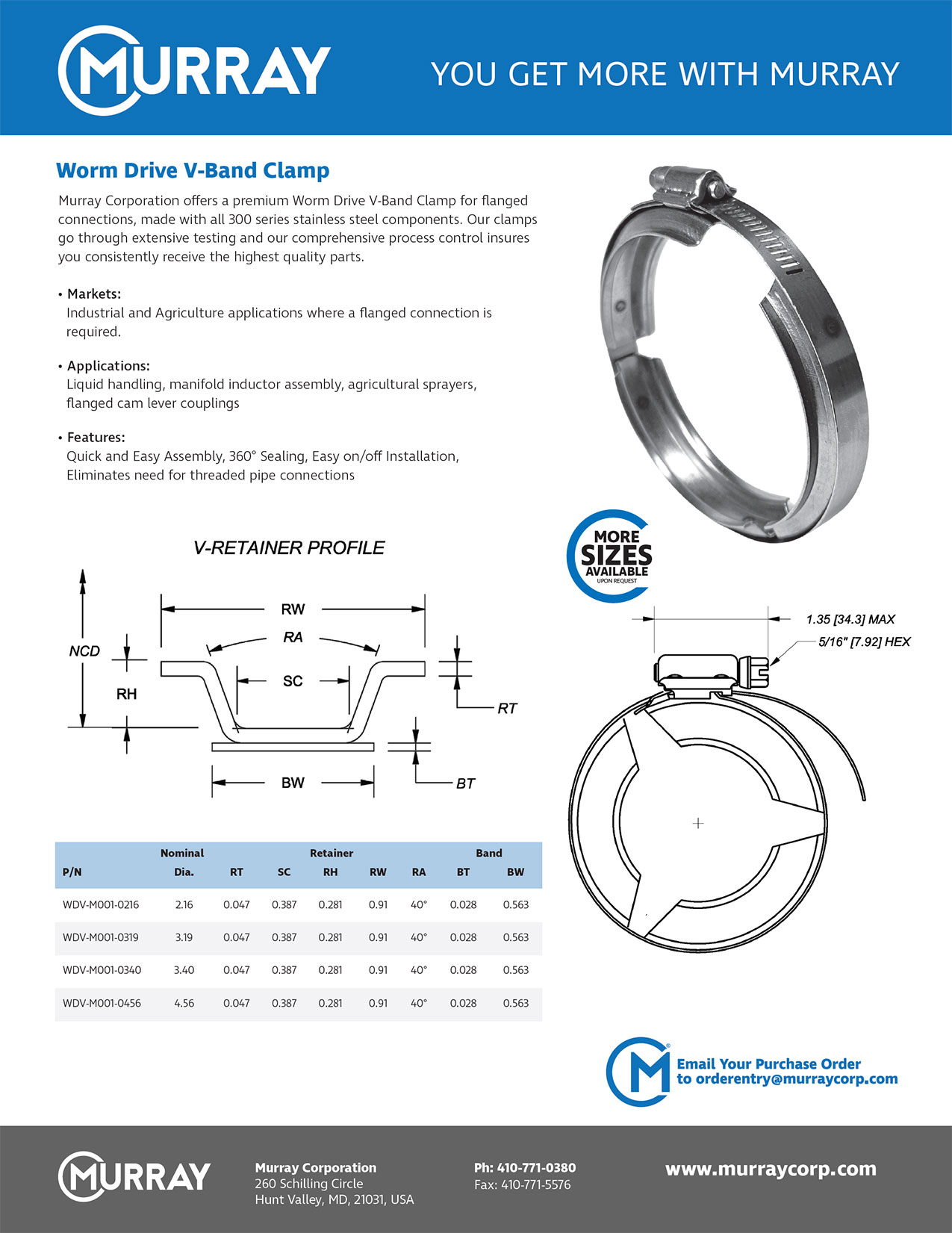

PDF Specification Sheet
Worm Drive V-Band Clamps & Couplings
What Makes Murray Corp Different?
Murray Corp parts are designed, engineered and produced to be the best in the industry so your connections stay together. We deliver parts on time, every time, guaranteed. If you join our Sure Ship Sure Stock Guarantee Program, you’ll never run out of parts again.

Contact us today! for more information or to ask us to quote on a custom V-band clamp for your industrial application.
