All 316 series stainless steel clamp designed for plumbing applications. 1/2″ inch wide band is thicker than standard worm drive clamp. This construction yields superior performance and longevity in corrosive environments. Applications include plumbing, water well, municipal storm drain systems, irrigation, marine and transportation.

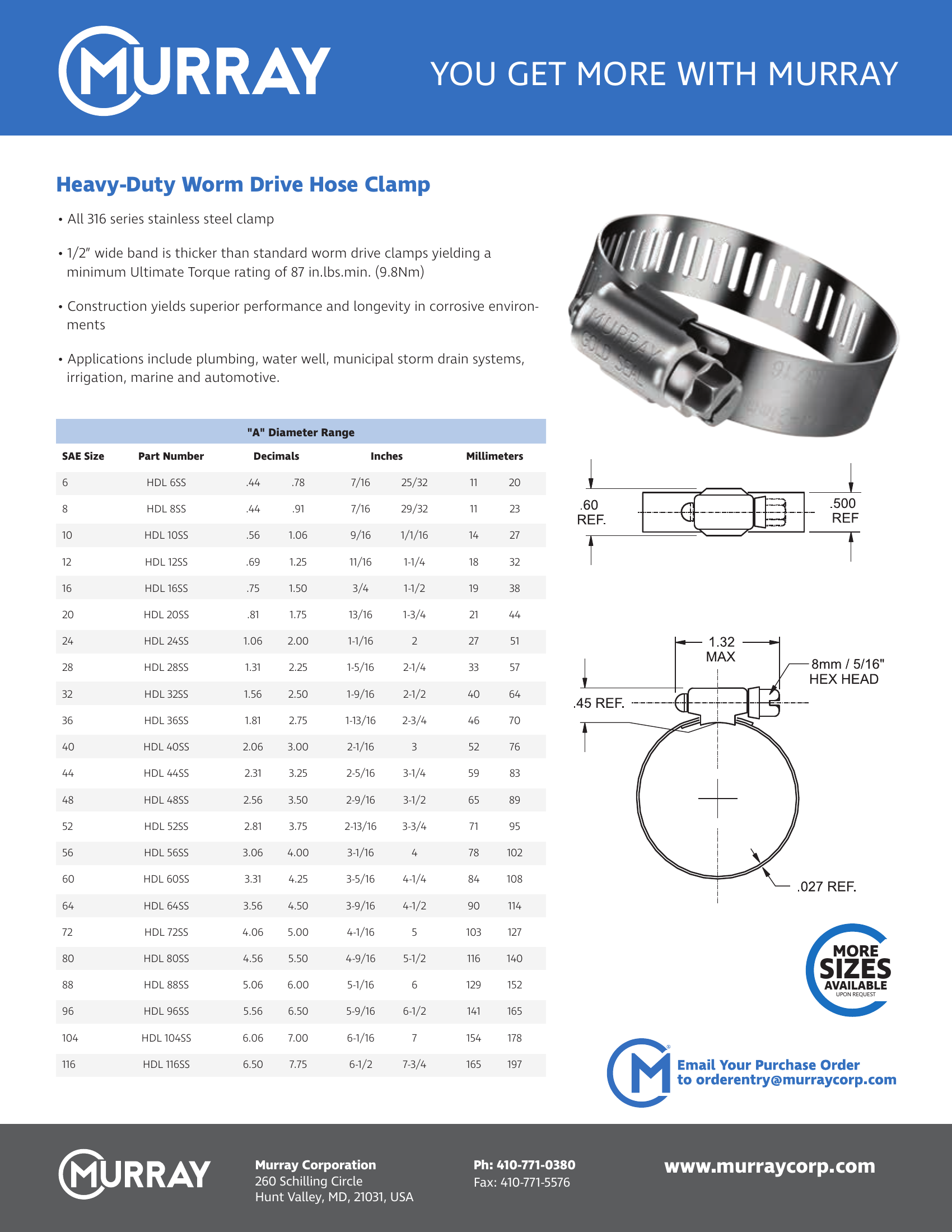

Download Specifications (PDF)"A" Diameter Range | |||||||
---|---|---|---|---|---|---|---|
SAE Size | Part Number | Decimals | Inches | Millimeters | |||
6 | HDL 6SS | .44 | .78 | 7/16 | 25/32 | 11 | 20 |
8 | HDL 8SS | .44 | .91 | 7/16 | 29/32 | 11 | 23 |
10 | HDL 10SS | .56 | 1.06 | 9/16 | 1/1/16 | 14 | 27 |
12 | HDL 12SS | .69 | 1.25 | 11/16 | 1-1/4 | 18 | 32 |
16 | HDL 16SS | .75 | 1.50 | 3/4 | 1-1/2 | 19 | 38 |
20 | HDL 20SS | .81 | 1.75 | 13/16 | 1-3/4 | 21 | 44 |
24 | HDL 24SS | 1.06 | 2.00 | 1-1/16 | 2 | 27 | 51 |
28 | HDL 28SS | 1.31 | 2.25 | 1-5/16 | 2-1/4 | 33 | 57 |
32 | HDL 32SS | 1.56 | 2.50 | 1-9/16 | 2-1/2 | 40 | 64 |
36 | HDL 36SS | 1.81 | 2.75 | 1-13/16 | 2-3/4 | 46 | 70 |
40 | HDL 40SS | 2.06 | 3.00 | 2-1/16 | 3 | 52 | 76 |
44 | HDL 44SS | 2.31 | 3.25 | 2-5/16 | 3-1/4 | 59 | 83 |
48 | HDL 48SS | 2.56 | 3.50 | 2-9/16 | 3-1/2 | 65 | 89 |
52 | HDL 52SS | 2.81 | 3.75 | 2-13/16 | 3-3/4 | 71 | 95 |
56 | HDL 56SS | 3.06 | 4.00 | 3-1/16 | 4 | 78 | 102 |
60 | HDL 60SS | 3.31 | 4.25 | 3-5/16 | 4-1/4 | 84 | 108 |
64 | HDL 64SS | 3.56 | 4.50 | 3-9/16 | 4-1/2 | 90 | 114 |
72 | HDL 72SS | 4.06 | 5.00 | 4-1/16 | 5 | 103 | 127 |
80 | HDL 80SS | 4.56 | 5.50 | 4-9/16 | 5-1/2 | 116 | 140 |
88 | HDL 88SS | 5.06 | 6.00 | 5-1/16 | 6 | 129 | 152 |
96 | HDL 96SS | 5.56 | 6.50 | 5-9/16 | 6-1/2 | 141 | 165 |
104 | HDL 104SS | 6.06 | 7.00 | 6-1/16 | 7 | 154 | 178 |
116 | HDL 116SS | 6.50 | 7.75 | 6-1/2 | 7-3/4 | 165 | 197 |
